VUV to UV TRANSMISSION MEASUREMENTS

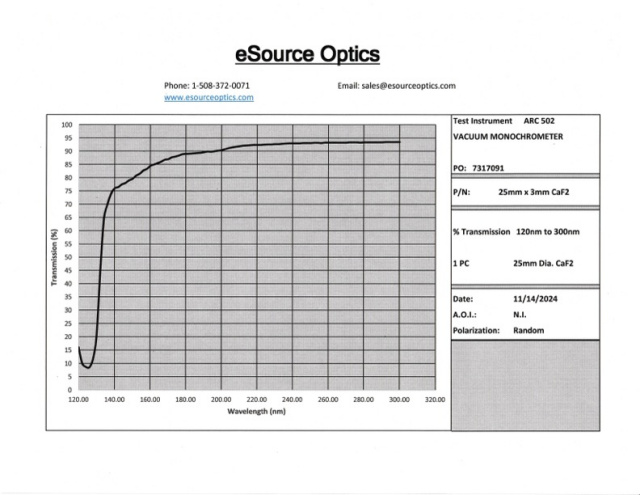

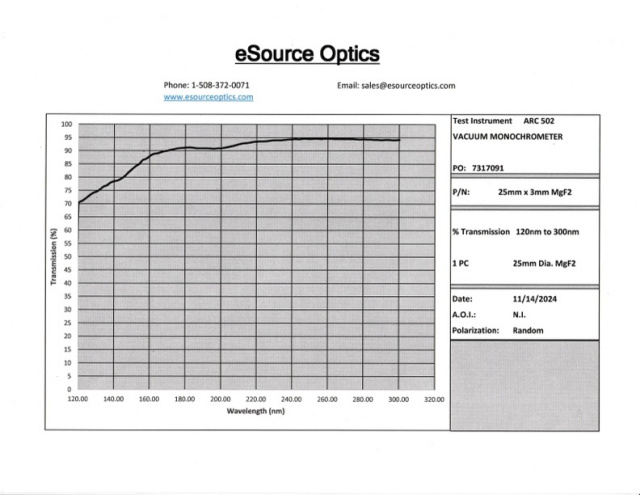

eSource Optics can supply individual VUV-UV Transmission Calibration Curves from the ~120nm - 320nm wavelength region with each Optical Window that we supply. All eSource Optics VUV to UV Optics are measured on a Vacuum Spectrophotometer system capable of measuring VUV through UV Transmission as short as 120nm. The system is based on a calibrated Model VM-502 0.2 Meter Vacuum Monochromator with VUV enhanced 1200g/mm grating & Deuterium light source for very accurate VUV to UV wavelength measurements.
